What makes this battery the right choice

120A BMS

30+ protection features

Aluminum frame

internal structure

H190/DIN H8

Motorhome under-seat

Low-Temp

Protection

Self-Heating

Automatic

Bluetooth® 5.4

App

What makes this battery the right choice

120A BMS

30+ protection features

Aluminum frame

internal structure

H190/DIN H8

Motorhome under-seat

Low-Temp

Protection

Self-Heating

Automatic

Bluetooth® 5.4

App

Lithink 12V 100Ah H190 LiFePO4 Battery with Bluetooth & Self-Heating, 120A BMS – DIN H8 for Campervan Under-Seat Use

€489,98 €879,98 48998:87998 Save €390,00

LITHINK SERVICEVERSPRECHEN Lithink Care+ Langfristiger Schutz. Persönlicher Support. Klar geregelt. Bis zu 10 Jahre Garantie 30 Tage Rückgaberecht Technischer Support

Designed for RV off-grid use

Standard H190 height at 190 mm, fits Ducato, Jumper, Sprinter, Boxer and other campers.

World's No. 1 LiFePO₄ internal build quality

Alloy frame, fiber protective braid, six-sided epoxy boards, and dual screw locking.

Bluetooth monitoring

App display of voltage, current, remaining capacity, cell voltages, and temperature.

120A Smart BMS

30+ protection functions plus TVS surge-current absorption for safe power supply in the RV.

Low-temperature protection

Charging off at ≤0°C, discharging off at ≤−20°C to protect the cells in cold conditions.

Self-heating

117W heating element starts at ≤5°C and stops at 15°C for winter use.

120A continuous discharge

Supports approx. 1,5kW inverter loads, depending on system design and efficiency.

500A surge current

500A/1s, 400A/3s, 300A/5s, and 200A/10s for short-term load peaks.

Core advantages for RV off-grid use

Designed for RV off-grid use: Standard H190 height with 190 mm, plug and play in Ducato, Jumper, Sprinter, Boxer and other vehicles – no modifications and more space in cabinets and storage areas.
World's No. 1 LiFePO₄ internal build quality: High-strength alloy frame instead of strapping; drive cables with fiber protective braid against abrasion; six-sided epoxy boards for full insulation; dual screw locking against vibration – reduces risks such as cell swelling, loosening, and short circuit for lasting safety and stability.
Bluetooth monitoring: App display of voltage, current, remaining capacity, cell voltages and temperature; 20% remaining-capacity warning and remote on/off for charging and discharging make it easier to plan departure, camping, and return.
120A battery management system: The advanced 120A Smart BMS offers 30+ protection functions, including over/undervoltage, overcurrent, short circuit, high and low temperature, and cell balancing. In addition, TVS surge-current absorption supports a safe power supply in the RV in any weather.

Cold protection, self-heating & performance

Low-temperature protection: Charging is turned off at ≤0°C; discharging is turned off at ≤−20°C to avoid irreversible cell damage in cold conditions.
Self-heating: The integrated 117W heating element starts at ≤5°C and stops at 15°C – for more efficient charging and discharging even in winter.
120A continuous discharge & multi-stage surge current: One battery delivers 120A continuous discharge current and supports approx. 1,5kW inverter loads at 12V DC, depending on efficiency – suitable for air conditioning, refrigerator, microwave, and other appliances.
Surge-current capability as a single battery: Supports 500A/1s, 400A/3s, 300A/5s and 200A/10s – reliably covers air conditioner compressor start-up, microwave switch-on, inductive load peaks, and pump start-up.

Cells, charging & protection rating

A+ automotive-grade cells: High-quality LiFePO₄ cells with ≥5000 cycles at 100% DOD and ≥80% remaining capacity after 10 years with proper use.
Fast charging & multiple sources: Supports mains charger (AC), vehicle-side charging and solar; with 400W PV a full charge is possible in about 4,5 hours.
IP65 protection rating: Dustproof and rain-resistant; stable operation in rain, mud, or shallow water crossings.

Energy density, weight & expansion

High energy density & low self-discharge: More Wh/kg than comparable lead-acid batteries; ≤2%/month self-discharge – low maintenance effort during longer periods of non-use.
Lightweight design & efficiency: Total weight approx. 11,1 kg / 24,5 lb, about 1/3–1/2 of an equivalent lead-acid battery – reduces vehicle weight and consumption and improves range.
Multiple expansion & flexible configuration: Up to 4P4S for higher voltage or capacity – adaptable to a wide range of off-grid applications.

VAT Rate: Incl. 19% VAT.

(only DE) Incl. 0% VAT. / 2x batteries (extra 2% discount) €411,58 €879,98
Incl. 19% VAT. / 2x batteries (extra 2% discount) €489,98 €879,98

Choose package: 2x batteries (extra 2% discount)

Incl. 19% VAT. / 1x Battery €249,99 €439,99
Incl. 19% VAT. / 2x batteries (extra 2% discount) €489,98 €879,98
Incl. 19% VAT. / 4x batteries (extra 3% discount) €969,96 €1.759,96
Incl. 19% VAT. / 1x Battery + 10A waterproof charger (extra 2% discount) €323,38 €589,98
Incl. 19% VAT. / 1x Battery + 20A waterproof fast charger (extra 2% discount) €342,98 €619,98

Product variants

Ihre Auswahl

Sofort verfügbar

12V 100Ah H190 Smart

Incl. 19% VAT. / 2x batteries (extra 2% discount)

Quantity

Within Germany: delivery time 2–3 days, to other EU countries: delivery time 3–5 days

€489,98 €879,98

Sie sparen €390,00

8 years of LiThink Labor – the more you buy, the more you save!

Extra-Rabatt

6 % EXTRA

Mit Coupon zusätzlich sparen −€29,40

Bequem bezahlen

xml

Reliable Delivery

Free & fast shipping – Within Germany & the EU

LiThink 12V 100Ah H190 LiFePO4 Batterie: Lebenslanger 1:1 Technik-Support – Direkter Service durch Ingenieure

Lifetime 1:1 Technical Support – Direct service from engineers

LiThink 12V 100Ah H190 LiFePO4 Batterie: 10 Jahre Garantie – Langfristiger Schutz, sorgenfrei genießen

10 Year Warranty – Long-term protection, enjoy peace of mind

30-day free returns – No questions asked

Share:

Share

Expert rating

The LITHINK 12V100Ah LFP battery is a real powerhouse.

"The interior is really very well made and very solid. I especially like the metal frame that compresses the cells."

Techni Camper

France

LITHINK LITHIUM BATTERY WITH SELF-HEATING AT LOW TEMPERATURES

“The battery is truly optimally designed — it stands for quality and durability.”

Mountain Hedgehogs

Italy

With this Li-Think battery, I can run my heater

“With a full charge, I can use my diesel heater for about 5 hours a day – that’s enough for about two weeks or even longer.”

and Stark

France

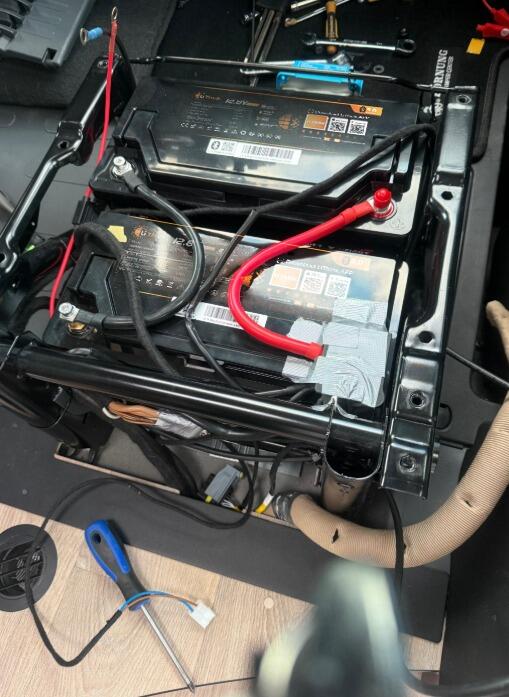

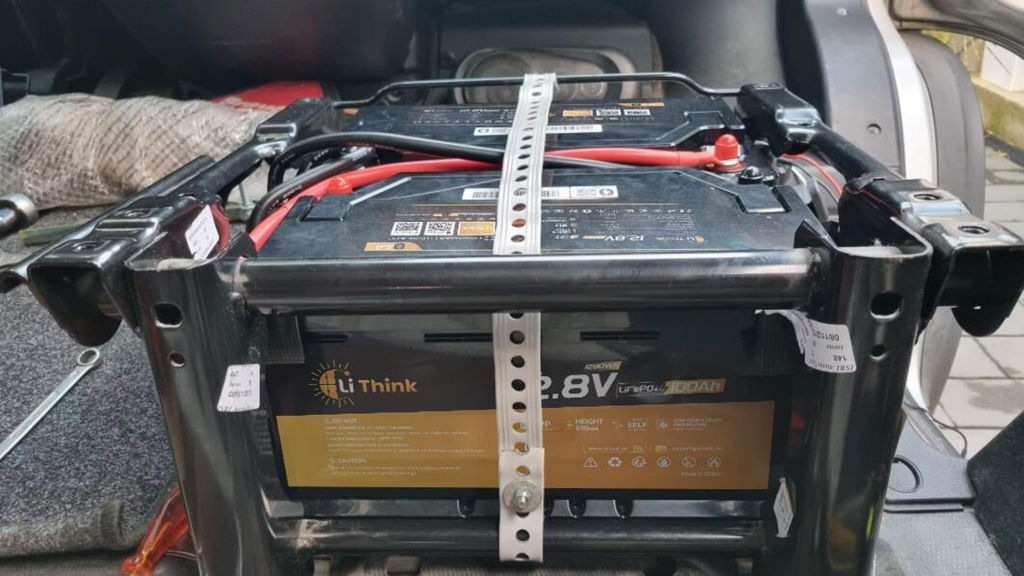

How do you install a lithium battery in a motorhome instead of a lead-acid battery? LiThink 100AH

“This battery has been specially developed for motorhomes and enables a direct upgrade from lead-acid to lithium batteries – with more autonomy, more power, and significantly more convenience in everyday use.”

Improve Daily Life

France

World's No. 1 LiFePO₄ internal construction quality

Anti-swelling | leak-proof | vibration-resistant | up to +30% cell lifespan

2× Capacity, ½ Weight

Double the capacity, half the weight and up to 12 times the lifespan — at lifetime costs of only 0,03 €/kWh.

2× Capacity

Up to 2× more usable energy
1/2 Weight

Up to 50% lighter
12× Energy Costs

Only 0,03 $/kWh over the lifetime
0.03 Energy Costs

Only 0,03 €/kWh over the lifetime

LiThink 12V 100Ah H190 LiFePO4 Batterie: 2× Kapazität, ½ Gewicht

Power Reserves for Motorhome & High-Power Loads

Reserve capacity for load peaks – up to 500 A peak and 120 A continuous current (12 V) for multiple devices simultaneously

500 A 1 s

Coffee machine
400 A 3 s

Kettle
300 A 5 s

Microwave
200 A 10 s

Compressor fridge

LiThink 12V 100Ah H190 LiFePO4 Batterie: Kraftreserven für Wohnmobil & Hochlast-Verbraucher

For motorhome, vanlife & camping – always keep your power supply in sight

Bluetooth App & Battery Monitoring in the Motorhome

LiThink 12V 100Ah H190 LiFePO4 Batterie: Bluetooth-App & Batteriemonitoring im Wohnmobil

13 Alarms
Remote Assistance
Series/Parallel Management
Low Battery Alarm
Cell Monitoring
Real-time Data

Flexible for motorhome, camping & off-grid | Combinable up to 4P4S

A battery – built for every use

Motorhome/Van Life
Garage/Studio
Tent camp
Off-Grid Cabin
UPS & Backup
Boat / Marine

LiThink 12V 100Ah H190 LiFePO4 Batterie: Ein Akku – für jeden Einsatz gebaut

Winter-ready for motorhome & van life

BMS cold protection and integrated self-heating keep your 12-V onboard electrical system reliably running even in deep snow.

0 °C

Charging Stop
5 °C

Load Release
−20 °C

Unloading-Stop
−10 °C

Unloading Authorization

LiThink 12V 100Ah H190 LiFePO4 Batterie: Wintertauglich fürs Wohnmobil & Vanlife

Self-heating battery for motorhome

Safe charging in frost – the integrated heating function automatically brings the cells up to operating temperature before charging.

≤5°C

Car heater
15 °C

Heating shut-off

LiThink 12V 100Ah H190 LiFePO4 Batterie: Batterie mit Selbstheizung fürs Wohnmobil

Specifications & Scope of Delivery

Included in the Scope of Delivery

Lithink 12V 100Ah Battery
Manual (DE/EN)
Bluetooth App Card / Warranty Card (DE/EN)
Quick Start Guide (DE/EN)
2× Lithink stickers
2× M8 screws & 2× plus/minus pole caps

Four charging options, one battery

Whether with a charger, while driving, via solar power or a generator – your Lithink LiFePO₄ battery stays reliably charged everywhere.

Four charging options, one battery

Whether with a charger, while driving, via solar power or a generator – your Lithink LiFePO₄ battery stays reliably charged everywhere.

Charger

Trip

Solar

Generator

Important Safety Instructions

LiThink 12V 100Ah H190 LiFePO4 Batterie: Isolierte Handschuhe tragen

Gloves

Wear insulated gloves

When unpacking and connecting the battery, always wear suitable protective gloves.

LiThink 12V 100Ah H190 LiFePO4 Batterie: Vor der ersten Nutzung vollständig aufladen

Full charge

Fully charge before first use

The battery is delivered with approx. 60 % charge – fully charge it once before use.

LiThink 12V 100Ah H190 LiFePO4 Batterie: Blankdrähte vor dem Anschluss isolieren

Insulation

Insulate bare wires before connecting

Always secure exposed conductors first with suitable insulating material before they are connected to the battery.

LiThink 12V 100Ah H190 LiFePO4 Batterie: Plus und Minus korrekt anschließen

Polarity

Connect positive and negative correctly

Before tightening the terminals, check that the positive and negative poles are not reversed. Tighten the terminals to 12 N·m.

LiThink 12V 100Ah H190 LiFePO4 Batterie: Nur passendes LiFePO₄-Ladegerät verwenden

Charger

Use only a compatible LiFePO₄ charger

Charge 12,8 V battery at 14,6 V, 25,6 V battery at 29,2 V.

LiThink 12V 100Ah H190 LiFePO4 Batterie: Für die Lagerung auf ca. 50 % laden

Storage

Charge to approximately 50 % for storage

Store at 10–35 °C and recharge approximately every 3 months.

LiThink 12V 100Ah H190 LiFePO4 Batterie: Nur identische Lithink-Batterien verbinden

Assorted batteries

Only connect identical Lithink batteries

Do not mix with other brands; for series/parallel connections use only identical models, purchase interval ≤ 1 month.

Burden

Example title

Check device power before connection
Subtitle: Match the total power of the loads with the battery/inverter.

LiThink 12V 100Ah H190 LiFePO4 Batterie: Kabel nach Stromstärke auswählen

Cable

Select cable by current rating

For higher currents, use thicker cables according to the table.

FAQs

Still have questions?
More information in our FAQs.

F: Which motorhome brands or models are compatible with the DIN-H8 battery format?

A: DIN H8 (also known as Group 49 or L5) is a common battery format in many European motorhomes, campervans and SUVs. Our DIN-H8-LiFePO₄ batteries (e.g. LT‑12‑100‑120‑BT‑LTP2‑H‑H8‑RV and LT‑12‑140‑200‑BT‑LTP2‑H‑H8‑RV) fit models from the following manufacturers:

Hymer: B-Class ModernComfort, Exsis-i
Knaus: BoxStar, Sky TI, Van TI
Weinsberg: CaraCompact, CaraLoft
Dethleffs: Globebus, Trend
Bürstner: Nexxo Van, Lyseo
Carado: T135, V132, CV601
Adria: Twin Supreme, Coral
Sunlight: Cliff, V60, T68
Laika: Kosmo, Kreos
Pilote: Pacific, Galaxy

Please check the exact dimensions and cable routing before installation or consult a professional.

F: What is this battery intended for?

A: This 12V 100Ah LiFePO₄ battery was specially developed for motorhomes. It reliably powers lighting, refrigerator, air conditioning and entertainment electronics. The RV model is optimized in size and connection layout for vehicle installation.

F: What is this battery intended for?

A: The nominal capacity is 100Ah. The standard charging current is 0.2C–0.5C (20–50A), the maximum continuous current (charging/discharging) is 1.2C (120A).

F: How many charge cycles does the battery have?

A: Up to 8000 charge cycles at 80 % depth of discharge (DoD).

F: Is the battery safe to use while driving in the motorhome?

A: 10 years. Free replacement or repair within this period.

Specification comparison between products Lithink 12V 100Ah H190 LiFePO4 Battery with Bluetooth & Self-Heating, 120A BMS – DIN H8 for Campervan Under-Seat Use, Lithink 12V 100Ah TM LiFePO4 Battery with Bluetooth & Self-Heating, 150A BMS – for Trolling Motor, Lithink 12V 140Ah H190 LiFePO4 Battery with Bluetooth & Self-Heating, 200A BMS – DIN H8 for Motorhome Under-Seat, Lithink 12V 280Ah Pro LiFePO4 Battery with EVE LF280K-V3 Cells, 200A BMS, Bluetooth & Self-Heating – for Trolling Motor, RV & Solar System, Lithink 12V 280Ah W190 Mini Pro Smart LiFePO4 Battery with EVE Cells LF280K-V3, 200A BMS, Bluetooth & Self-Heating – for Trolling Motor, RV & Solar System, Lithink 12V 314Ah Mini Pro LiFePO4 Battery with EVE MB31 Cells, 300A BMS, Bluetooth & Self-Heating – for Trolling Motor, RV & Solar System, Lithink 12V 334Ah W190 Mini Pro Smart LiFePO4 Battery with EVE LF334 Cells, 300A BMS, Bluetooth & Self-Heating – for Trolling Motors, RVs & Solar Systems
Highlight differences	Lithink 12V 100Ah H190 LiFePO4 Battery with Bluetooth & Self-Heating, 120A BMS – DIN H8 for Campervan Under-Seat UseFrom €209,99	Lithink 12V 100Ah TM LiFePO4 Battery with Bluetooth & Self-Heating, 150A BMS – for Trolling MotorFrom €209,99	Lithink 12V 140Ah H190 LiFePO4 Battery with Bluetooth & Self-Heating, 200A BMS – DIN H8 for Motorhome Under-SeatFrom €299,99	Lithink 12V 280Ah Pro LiFePO4 Battery with EVE LF280K-V3 Cells, 200A BMS, Bluetooth & Self-Heating – for Trolling Motor, RV & Solar SystemFrom €459,99	Lithink 12V 280Ah W190 Mini Pro Smart LiFePO4 Battery with EVE Cells LF280K-V3, 200A BMS, Bluetooth & Self-Heating – for Trolling Motor, RV & Solar SystemFrom €459,99	Lithink 12V 314Ah Mini Pro LiFePO4 Battery with EVE MB31 Cells, 300A BMS, Bluetooth & Self-Heating – for Trolling Motor, RV & Solar SystemFrom €499,99	Lithink 12V 334Ah W190 Mini Pro Smart LiFePO4 Battery with EVE LF334 Cells, 300A BMS, Bluetooth & Self-Heating – for Trolling Motors, RVs & Solar SystemsFrom €529,99
Basic electrical specifications
Cell type	LiFePO₄	LiFePO₄	LiFePO₄	LiFePO₄	LiFePO₄	LiFePO₄	LiFePO₄
Nominal voltage	12,8 V	12.8 V	12,8 V	12,8 V	12,8 V	12,8 V	12,8 V
Nominal capacity	100 Ah	100 Ah	140 Ah	280 Ah	280 Ah	314 Ah	334 Ah
Energy content	1280 Wh	1280 Wh	1792 Wh	3584 Wh	3584 Wh	4019,2 Wh	4275,2 Wh
Discharge cut-off voltage	10.8 V	10.8 V	10.8 V	10,8 V	10,8 V	10,8 V	10,8 V
Internal resistance	≤ 40 mΩ	≤ 40 mΩ	≤ 40 mΩ	≤ 40 mΩ	≤ 40 mΩ	≤ 100 mΩ	≤ 100 mΩ
Self-discharge rate	≤ 2%	≤ 2%	≤ 2%	≤ 2%	≤ 2%	≤ 2%	≤ 2%
Cycle life	5,000+ cycles @100% DoD; 8,000+ cycles @70% DoD; 15,000+ cycles @40% DoD	5,000+ cycles @100% DoD; 8,000+ cycles @70% DoD; 15,000+ cycles @40% DoD	5,000+ cycles @100% DoD; 8,000+ cycles @70% DoD; 15,000+ cycles @40% DoD	8,000+ cycles @100% DoD; 11,000+ cycles @70% DoD; 20,000+ cycles @40% DoD	8,000+ cycles @100% DoD; 11,000+ cycles @70% DoD; 20,000+ cycles @40% DoD	8,000+ cycles @100% DoD; 11,000+ cycles @70% DoD; 20,000+ cycles @40% DoD	8,000+ cycles @100% DoD; 11,000+ cycles @70% DoD; 20,000+ cycles @40% DoD
Charging & discharging properties
Charging method	CC / CV	CC / CV	CC / CV	CC / CV	CC / CV	CC / CV	CC / CV
Charging voltage	14,6 V	14,6 V	14,6 V	14,6 V	14,6 V	14.6 V	14,6 V
Recommended charge current	20 A (0,2C)	20 A (0,2C)	28 A (0.2 C)	56 A (0,2C)	56 A (0,2C)	62,8 A (0,2C)	66,8 A (0,2C)
Min. charge current for heating function	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Maximum continuous charge current	120 A	150 A	200 A	200 A	200 A	300 A	300 A
Maximum continuous discharge current	120 A	150 A	200 A	200 A	200 A	300 A	300 A
Maximum continuous output power	1536 W	1920 W	2560 W	2560 W	2560 W	2560 W	2560 W
Charge time at recommended charge current	20A @ 5h	20A @ 5h	28A @ 5h	56A @ 5h	56A @ 5h	62,8A @ 5h	66,8A @ 5h
Maximum discharge current (1 second)	500A	550A	1000A	1000A	1000A	1000A	1000A
Maximum discharge current (3 seconds)	400A	450A	700A	700A	700A	900A	900A
Maximum discharge current (5 seconds)	300A	350A	500A	500A	500A	600A	600A
Maximum discharge current (10 seconds)	200A	200A	300A	300A	300A	450A	450A
BMS & protection functions
BMS nominal current	120 A	150 A	200 A	200 A	200 A	300 A	300 A
Low-temperature charge protection	Ja	Ja	Ja	Ja	Ja	Ja	Ja
Charge stop temperature	0℃ / 32℉	0℃ / 32℉	0℃ / 32℉	0℃ / 32℉	0℃ / 32℉	0℃ / 32℉	0℃ / 32℉
Charge recovery temperature	5℃ / 41℉	5℃ / 41℉	5℃ / 41℉	5℃ / 41℉	5℃ / 41℉	5℃ / 41℉	5℃ / 41℉
Low-temperature discharge protection	Ja	Ja	Ja	Ja	Ja	Ja	Ja
Discharge stop temperature	-20 °C / -4 °F	-20 °C / -4 °F	-20 °C / -4 °F	-20 °C / -4 °F	-20 °C / -4 °F	-20 °C / -4 °F	-20 °C / -4 °F
Discharge recovery temperature	-10 °C / 14 °F	-10 °C / 14 °F	-10 °C / 14 °F	-10 °C / 14 °F	-10 °C / 14 °F	-10 °C / 14 °F	-10 °C / 14 °F
Temperature range
Charge temperature range	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F	0°C to 50°C / 32°F to 122°F
Discharge temperature range	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F	-20°C to 60°C / -4°F to 140°F
Storage temperature range (< 1 year)	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F	-20°C to 25°C / -4°F to 77°F
Storage temperature range (< 3 months)	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F	-20°C to 40°C / -4°F to 104°F
Storage temperature range (< 7 days)	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F	-20°C to 65°C / -4°F to 149°F
Heating function
Heating temperature	0℃-10℃ (32℉-50℉)	0℃-10℃ (32℉-50℉)	0℃-10℃ (32℉-50℉)	0℃-10℃ (32℉-50℉)	0℃-10℃ (32℉-50℉)	0℃-10℃ (32℉-50℉)	0℃-10℃ (32℉-50℉)
Heating time at 100W (from -10° C / 14° F)	70–90 minutes	70–90 minutes	70–90 minutes	70–90 minutes	70–90 minutes	20–30 minutes	100–150 minutes
Heating time at 100W (from -20° C / -4° F)	100–150 minutes	100–150 minutes	100–150 minutes	100–150 minutes	100–150 minutes	30–40 minutes	70–90 minutes
Internal structural parameters
Temperature sensors	3	3	3	3	3	3	3
Cell holder	High-Strength Alloy	High-strength alloy	High-strength alloy	High-Strength Alloy	high-strength alloy	High-strength alloy	High-strength alloy
Insulation	6-sided epoxy plates	6-sided epoxy plates	6-sided epoxy plates	6-sided epoxy plates	6-sided epoxy plates	6-sided epoxy plates	6-sided epoxy boards
Power line protection	Fiberglass Hose	fiberglass hose	Fiberglass Hose	Fiberglass hose	fiberglass hose	Fiberglass hose	fiberglass sleeve
Busbar protection	Multiple Wrapping	Multiple Wrapping	Multiple Wraps	Multiple Wrapping	Multiple wrapping	Multiple Wrapping	Multiple wrapping
Screw locking	Screw Lock + Electronics-Yellow Adhesive	Screw Lock + Electronics-Yellow Adhesive	Threadlocker + electronics yellow adhesive	Screw lock + yellow electronics adhesive	threadlocker + yellow electronics adhesive	Screw Locking + Electronics-Yellow Adhesive	Threadlocker + electronics yellow adhesive
Damping layer	EVA-Filling	EVA Filling	EVA filling	EVA filling	EVA padding	EVA-Filling	EVA filling
Terminal protection caps	Plastic caps	Plastic caps	Plastic Caps	Plastic caps	plastic caps	Plastic Caps	plastic caps
Physical properties
Dimensions (mm)	360 × 178 × 188 mm	339 × 185 × 215 mm	360 × 178 × 188 mm	522 × 268 × 218 mm	383 * 204 * 268 mm	383 × 204 × 268 mm	383 × 204 × 268 mm
Dimensions (inch)	14,17 × 7 × 7,4 in	13,34 × 7,28 × 8,46 in	14,17 × 7 × 7,4 in	20,55 × 10,55 × 8,58 in	15.08 × 8.03 × 10.55 in	15,08 × 8,03 × 10,55 in	15,08 × 8,03 × 10,55 in
Housing material	ABS/PC Alloy	ABS/PC Alloy	ABS/PC Alloy	ABS/PC Alloy	ABS/PC Alloy	ABS/PC Alloy	ABS/PC Alloy
Protection class	IP65	IP67	IP65	IP65	IP65	IP65	IP65
Housing color	Black	Black	Black	Black	Black	Black	Black
Total battery weight	11,1 kg / 24,5 lbs	11,1 kg / 24,5 lbs	13,7 kg / 30,2 lbs	28 kg / 61,7 lbs	28 kg / 61,7 lbs	28 kg / 61.7 lbs	27,1 kg / 59,7 lbs
Cell weight	7,6 kg / 16 lbs	7,6 kg / 16 lbs	10 kg / 22 lbs	21,6 kg / 47,6 lbs	21,6 kg / 47,6 lbs	22,4 kg / 49,4 lbs	22 kg / 48,5 lbs
Recommended tightening torque	12 N·m	12 N·m	12 N·m	12 N·m	12 N·m	12 N·m	12 N·m
Terminals	M8 × 12 mm	M8 × 12 mm	M8 × 12 mm	M8 × 12 mm	M8 × 12 mm	M8 × 12 mm	M8 × 12 mm
Structure & configuration
Number of cells	4	4	4	4	4	4	4
	4P4S	4P4S	4S4P	4P4S	4P4S	4P4S	4P4S

Ottima batteria, leggera e compatta, app facile e precisa (provata con pinza amperometroca) la consiglio vivamente!

Ich nutze die Batterie jetzt seit gut sieben Monaten im Familienvan, und ich dachte, nach dieser Zeit kann ich mal ein richtig ausführliches Feedback geben. Was mir am stärksten aufgefallen ist: Sie verhält sich extrem vorhersehbar. Ich habe mir angewöhnt, einmal pro Woche die App zu öffnen—nicht weil ich muss, sondern weil ich wissen will, wie sie sich im Alltag verhält. Die Werte sind fast immer identisch, und das gibt mir ein sehr gutes Gefühl, gerade wenn wir mit Kindern unterwegs sind.

Außerdem schätze ich die Tatsache, dass sie keinerlei Geräusche macht. Wir schlafen oft direkt über dem Einbaufach, und bei der alten Batterie (andere Technologie) gab es immer ein leichtes Summen. Jetzt: absolute Ruhe. Meine Frau war davon ehrlich gesagt am meisten beeindruckt.

Noch etwas, was mir gefällt: Die Temperaturanzeige. Im Sommerurlaub in Kroatien hatten wir mehrere Tage über 30 °C im Fahrzeug, und die App hat mir früh signalisiert, wann ich ein Fenster öffnen sollte. Solche Details machen den Unterschied.

Ich nutze die Lithink-Batterie jetzt seit knapp einem Jahr im Wohnmobil. Wir stehen oft frei, und die Batterie hält locker zwei Nächte durch – mit Licht, Wasserpumpe und Laptop. Noch nie Probleme gehabt.

Ich habe die 12 V 100 Ah Batterie in meinem Wohnmobil installiert und bin begeistert. Lädt schnell, hält die Spannung

Seit einem halben Jahr nutze ich die Lithink 12 V 100 Ah im Wohnmobil – absolut zuverlässig. Selbst bei langen Standzeiten bleibt die Spannung stabil, und das Bluetooth-Monitoring ist sehr praktisch unterwegs.

1 2 3

1. How can I use the discount code?

2. Can I redeem multiple discount codes?

3. Why is my discount code invalid?

0% VAT. Batteries

Lithink 12V 100Ah H190 LiFePO4 Battery with Bluetooth & Self-Heating, 120A BMS – DIN H8 for Campervan Under-Seat Use

12V 100Ah H190 Smart

Expert rating

The LITHINK 12V100Ah LFP battery is a real powerhouse.

LITHINK LITHIUM BATTERY WITH SELF-HEATING AT LOW TEMPERATURES

With this Li-Think battery, I can run my heater

How do you install a lithium battery in a motorhome instead of a lead-acid battery? LiThink 100AH

BMS safety, as an RV needs it

World's No. 1 LiFePO₄ internal construction quality

2× Capacity

1/2 Weight

12× Energy Costs

0.03 Energy Costs

500 A 1 s

400 A 3 s

300 A 5 s

200 A 10 s

13 Alarms

Remote Assistance

Series/Parallel Management

Low Battery Alarm

Cell Monitoring

Real-time Data

Motorhome/Van Life

Garage/Studio

Tent camp

Off-Grid Cabin

UPS & Backup

Boat / Marine

0 °C

5 °C

−20 °C

−10 °C

≤5°C

15 °C

A+ cells in automotive quality

Developed according to European standards

Specifications & Scope of Delivery

Four charging options, one battery

Four charging options, one battery

Important Safety Instructions

Wear insulated gloves

Fully charge before first use

Insulate bare wires before connecting

Connect positive and negative correctly

Use only a compatible LiFePO₄ charger

Charge to approximately 50 % for storage

Only connect identical Lithink batteries

Example title

Select cable by current rating

FAQs

Customer Reviews
