Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries
Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries
Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries
Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries
Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries
Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries
Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries
Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries

Your best choice

Activate

Function

3 types

Battery Adaptation

5 Types

Protection

3 stages

Charging

IP65

Rated

Your best choice

Activate

Function

3 types

Battery Adaptation

5 Types

Protection

3 stages

Charging

IP65

Rated

Lithink 14.6V 10A Waterproof Charger – for LiFePO₄, NCM and Lead-Acid Batteries

Sale price €54,99Regular price €149,99 5499:14999 Save €95,00
Ten-year warranty & 30-day free returns included
  1. Wide input voltage range: Supports 100–240 VAC, 50–60 Hz, automatically adapts to any mains.
  2. Multi-chemistry compatibility: Easy switching between 4S LiFePO₄ (14,6 V), NCM (12,6 V) and lead-acid (14,7 V/13,8 V float charge).
  3. Output: 10 A / 147 W constant-current/constant-voltage charging (CC-CV).
  4. Protection features: Built-in overvoltage, overcurrent, reverse-polarity, short-circuit and overtemperature protection.
  5. Housing & cooling: Die-cast aluminum housing with IP65-protection and finned cooling for efficient heat dissipation.

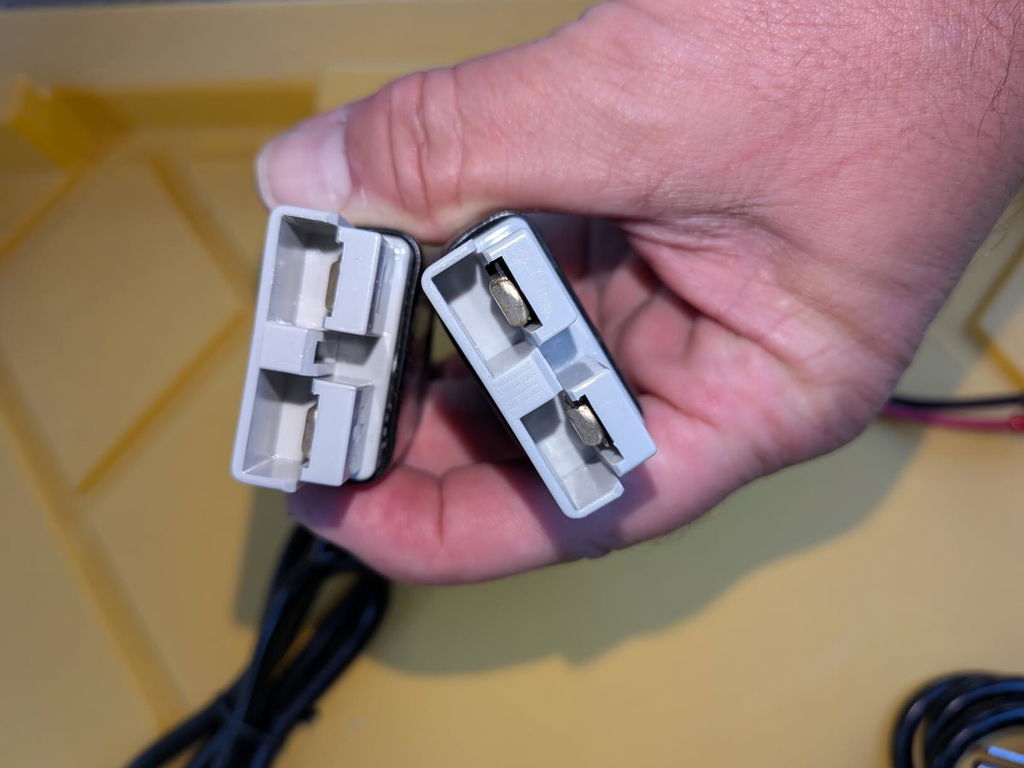

  6. Quick connect: 50 A Anderson connector with 2 m AC input cable and 1,5 m DC output cable.
  7. 0 V activation: Automatically wakes deeply discharged batteries and restores chargeability.
  8. Wall mount: Metal bracket for mounting to a wall or cabinet, saves space.
  9. LED status indicator: LEDs clearly indicate charging stage and error messages.
  10. LLC half-bridge resonant soft-switching: Reduces switching losses and EMI, increases conversion efficiency.
  11. Certifications: CE and RoHS compliant.
  12. Three-stage charging: Automatic switching between bulk (CC), absorption (CV) and float.
Save

7%

Save 7% Labor Month – Limited-Time Offer – Additional Discount Click & copy discount code
Bequem bezahlen
image/svg+xml Created with Sketch.
Reliable Delivery
Reliable Delivery

Free & fast shipping – Within Germany & the EU

<strong>Lifetime 1:1 technical support</strong> – Direct service by engineers

Lifetime 1:1 technical support – Direct service by engineers

<strong>2-year warranty</strong> – Long-term protection, enjoy peace of mind

2-year warranty – Long-term protection, enjoy peace of mind

30-day free returns – No questions asked

14.6V 10A Waterproof

  • 0 V Activation

    Reactivates the BMS automatically.

  • CC Fast Charging

    High-speed charging up to 90%.

  • RESUME Saturation

    Stable 14,6 V for full cells.

  • Car Shutdown

    Stops at 100% – no overcharging.

Controlled. Stable. Secure.

5-fold Smart Protection System

Monitors voltage and current and protects against overvoltage/overcurrent, short circuit, reverse polarity and overheating.

  • > 14,6 V

    Surge protection

  • 10 A

    Overcurrent protection

  • Automatic Stop

    Short-circuit protection

  • + / -

    Reverse polarity protection

  • ≥ 75 °C

    Overtemperature protection

Universal Compatibility

3 modes. 1 charger.

Switch the battery type manually – LiFePO₄ (14,6 V), SLA/AGM (14,7 V) or NCM Li-Ion (12,6 V). This allows the charger to operate with the intended charging profile and keep the voltage within the appropriate range.

LiFePO₄ • 14.6 V

SLA / AGM • 14,7 V

NCM Li-ion • 12.6 V

Durable housing & practical details

For everyday use: The housing made of aluminum alloy protects the electronics and aids heat dissipation. Passive cooling fins ensure quiet, stable operation. With the wall-mount kit the charger can be installed neatly – and the Anderson connector enables a quick, secure connection.

Specifications & What's included

Collapsible row

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Included in Delivery

  • Waterproof

  • Manual (DE/EN)

  • Anderson connector cable

FAQs

1. Which Lithink LiFePO4 batteries is this 14,6V-10A charger compatible with, and what capacities are recommended?

This 14.6V-10A single-port charger is compatible with all 12.8V Lithink lithium iron phosphate batteries, including common sizes such as 50Ah and 100Ah as well as larger capacities. It operates most efficiently when charging batteries of approximately 30Ah to 120Ah capacity. For example, it takes about 10 hours to charge a Lithink 12.8V 100Ah battery from empty to full. Even larger batteries (e.g., 200Ah) can be charged safely, though the total charging time increases accordingly for higher capacities.

2. How long does it take to fully charge Lithink lithium iron phosphate batteries of different capacities with the 14.6V-10A charger?

Charging time depends on the battery’s capacity. Rule of thumb: with a 10A charging current approximately 10Ah are charged into the battery per hour. For example, it takes about 5 hours to fully charge a Lithink 12.8V 50Ah LiFePO4 battery, while a 100Ah battery takes around 10 hours to reach full charge. Even larger batteries (about 200Ah) require correspondingly more time (a 200Ah battery roughly 20 hours for a full charge). The actual charging time can vary slightly depending on temperature and the battery’s initial state of charge, but in general this charger charges various Lithink batteries very efficiently at a constant 10A.

3. Is the 14.6V-10A charger safe to use? Does it have protection features against short circuit, overheating, etc.?

Yes. This charger was designed with multiple safety mechanisms and is very safe to use. It features built-in protections such as overtemperature protection, output short-circuit protection, overvoltage protection, and reverse-polarity protection (protection against swapped connections). If irregularities occur, the device automatically limits or interrupts the charging current to protect itself and the battery. The robust aluminum-alloy housing provides good heat dissipation and durability, and the intelligent 3-stage charging algorithm prevents overcharging. In summary, the Lithink 10A charger is safe and reliable when used correctly and effectively protects against short circuits, overheating, and other potential issues.

4. How can I tell that the battery is fully charged? Does the charger switch off automatically after the charging process is complete?

The Lithink charger features a clearly visible LED indicator for charge status. During charging the indicator glows solid red, and once the battery is fully charged the LED switches to green. The charger uses a constant-voltage phase toward the end of charging: when the battery is nearly full, the charging current is gradually reduced, and when the battery is fully charged the device automatically cuts the output voltage to prevent overcharging. So once the LED changes from red to green, the battery is full and the charger has automatically finished the charging process. You don’t need to worry about overcharging — the charger and the battery’s protective electronics ensure the charging stops safely at full charge.

5. Can this 10A charger charge multiple batteries at the same time? Is it possible to charge two batteries in parallel with this device?

As a rule, with the 14.6V-10A single-output charger it is recommended to charge only one 12.8V battery at a time. If necessary, however, two identical Lithink batteries can be connected in parallel and charged together – the charger will then treat them as a single battery with higher capacity and charge them as one. It must be ensured that the batteries are of the same type and have a similar state of charge before charging to ensure even charging. Note that the charger current of 10A is shared between the parallel-connected batteries; charging two batteries at the same time therefore does not double the charging current. The total time to fully charge both batteries is roughly equivalent to the sum of the individual charge times, so it will not be significantly faster than charging them sequentially. For optimal results and maximum safety Lithink recommends using a dual charger or a charger with multiple outputs to charge multiple batteries simultaneously on separate ports. If charging in parallel, be sure to follow the precautions mentioned (identical batteries, same state of charge, secure connections) and monitor the charging process closely.
